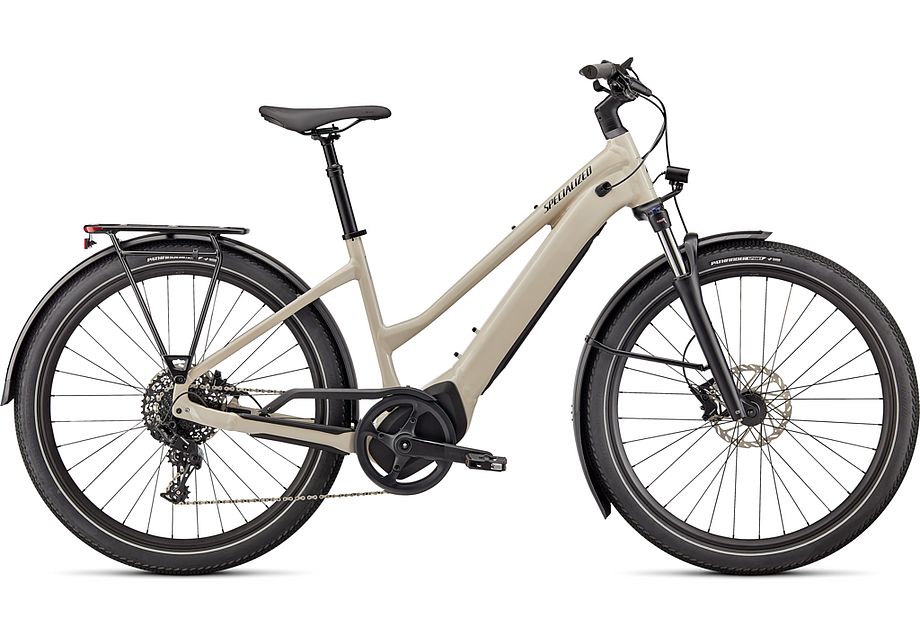

Vado 4.0 Step Thru
by SpecializedConsider Vado your high-performance transportation bike, getting you where you’re going with an unmatched combination of speed, reliability, and confidence. Whether you load it up with your stuff, or jump on and go, commute to work, or ride to the gym, Vado’s full power and huge range will get you from ‘point A’ to ‘point B’ ASAP.
The Specialized Vado has everything you need for e-powered transport. It brings a balanced nature to the way it handles and superior levels of comfort. This is a true class leader of its type.
Frame
E5 Aluminum, bottom bracket motor mount, fully integrated & lockable downtube battery, internal cable routing, lock and front rack mount
Fork
SR Suntour MobieA32, 80mm travel, lockout, fender-mounts, integrated light mount
Stem
Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp
Handlebars
Specialized, alloy, 15-degree backsweep, 46mm rise, 31.8mm
Grips
Specialized Body Geometry Contour, lock-on
Front Brake
SRAM Level, 2-piston caliper, hydraulic disc, 180mm 6-bolt
Rear Brake
SRAM Level, 2-piston caliper, hydraulic disc, 180mm 6-bolt
Shift Levers
SRAM NX, 11-speed trigger
Chain
KMC e11S, 11-speed w/ Missing Link™
Rear Derailleur
SRAM NX, 11-speed
Crankset
Custom alloy forged crankarms
Cassette
SRAM PG-1130, 11-speed, 11-42t
Chainrings
40T
Pedals
Specialized Commuter w/ grip tape & reflectors
Rims
650b disc, double-wall alloy, pinned, 32h
Front Hub
Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x100mm thru-axle, 32h
Rear Hub
Specialized alloy rear hub disc, sealed cardridge bearings, 6-bolt, 12x148mm thru-axle, 32h
Spokes
DT Swiss Industry
Front Tire
Pathfinder Sport Reflect, 650Bx2.3
Rear Tire
Pathfinder Sport Reflect, 650Bx2.3
Inner Tubes
Schrader, 40mm valve
Saddle
Rivo Sport, steel rails, 155mm
SeatPost
Spring suspension, alloy, 40mm travel, 30.9mm, 2-bolt clamp, 34.9mm sleeve
Seat Binder
Alloy, bolt-type, 34.9mm
Motor
Specialized 2.0, 70Nm torque, custom tuned motor, 250W nominal
UI/Remote
MasterMind TCD, w/handlebar remote, built-in anti-theft feature, Bluetooth® connectivity, customizable display pages
Battery
Specialized U2-710, alloy casing, state of charge display, 710Wh
Charger
Custom charger, 42V4A w/ Rosenberger plug, 100-240V
Wiring Harness
Custom wire harness
Headlight
Lezyne Ebike Hecto E65, 210 Lumen, 12V
Taillight
Spanninga Commuter Glow XE, 12V
Chaincase
custom chaincover
Kickstand
Specialized kickstand, 40mm mount
Rack
Specialized rack, MIK HD inteface, built-in pannier mounts, 27kg max load
Fenders
Specialized DRYTECH fenders, 65mm width, aluminum fenderstay
Bell
Simple bell
