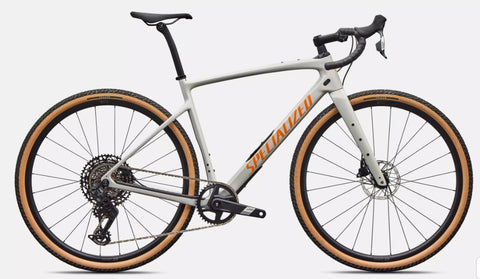

Diverge E5 Comp
by SpecializedDescription
Whether your goal is to escape on gravel back roads, far from cars and crowds, toe the start line at your first gravel race, or simply get the most versatile bike on the road or dirt, no bike is better than the new Diverge. It's quite simply the fastest, most capable - and just maybe the most fun - alloy bike we've ever made, delivering a ride that's quick and lively, but stable and confidence inspiring when the terrain gets rough. From Future Shock 1.5 and all-new gravel geometry, to category leading tire clearance, the new Diverge represents everything we've learned over more than 40 years of riding road, gravel and dirt. The Diverge writes an entirely new chapter in the gravel bike category, so you can dream up entirely new rides. It's the ultimate getaway vehicle.
Starting with premium E5 alloy frame and a full carbon FACT fork, we gave the Diverge Comp E5 our Future Shock 1.5 for a fast, confident and comfortable ride on road, in the dirt, and over thick gravel. SRAM’s gravel-inspired Apex 1 group shifts 1x11 gears smoothly on any terrain and Axis Elite alloy wheels with Pathfinder Sport 38mm tires add even more capability and versatility.
- Our Premium E5 Aluminum frame provides a stiff, light, and durable platform. When mated to our full carbon FACT fork, the Diverge Comp E5 becomes a light, lively and versatile bike ready to attack any surface.
- Speed, control and confidence - Future Shock 1.5 is ideal technology for the gravel rider. With 20mm of axial compliance, Future Shock 1.5 is progressively tuned specifically for gravel riding. This keeps you confident and in control, able to keep the power down and stay off the brakes over rough dirt roads and in thick loose gravel, all while keeping your hands, arms and neck fresh.
- We tossed gravel geometry ‘status-quo’ out the window. The new Diverge has the most progressive geometry we’ve ever created for a drop bar bike, giving riders a capable and stable bike in the dirt, that still feels responsive and nimble on the road. We’ve increased the frame’s reach, introduced a slacker head tube and a longer offset fork. All this creates incredible confidence with a planted feeling in the dirt, while spec’ing shorter stems keeps the overall cockpit length the same and the steering lively. We’ve kept the bike’s BB low to increase stability, but high enough to utilize with 650b wheels if that’s your jam.
- We’ve given the Diverge plenty of rack mounts, including fork and top tube mounts, to ensure you can take what you need, no matter how far you plan to go, or how long you plan to stay out.
- Nothing unlocks a bike’s capability like tire clearance, so we gave the new Diverge a whopping 47mm of tire clearance with a 700c wheel and 2.1” with a 650b wheel. Thanks to a drive side chain stay utilizing a machined alloy beam behind the chain rings we’ve created clearance without using a fragile dropped chain stay design or increasing chain stay length
Specifications
FRAMESET
- Seat Binder
- Alloy, 30.8mm
- Frame
- Specialized Diverge E5 Premium Aluminum, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc
SUSPENSION
- Fork
- Future Shock 1.5 w/Smooth Boot, FACT carbon, 12x100 mm thru-axle, flat-mount
COCKPIT
- SeatPost
- Alloy, 2-bolt Clamp, 12mm offset, 27.2mm
- Saddle
- Body Geometry Power Sport, steel rails
- Stem
- Future Stem, Comp
- Handlebars
- Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare
- Tape
- Specialized S-Wrap
BRAKES
- Front Brake
- SRAM Apex, hydraulic disc, 160mm G2 CenterLine rotor
- Rear Brake
- SRAM Apex, hydraulic disc, 160mm G2 CenterLine rotor
DRIVETRAIN
- Chain
- KMC X11 Extra Lightweight, 11-speed
- Rear Derailleur
- SRAM Apex 1, long cage, 11-speed
- Crankset
- SRAM Apex 1x
- Shift Levers
- "SRAM Apex, hydraulic "
- Bottom Bracket
- Sram GXP
- Chainrings
- 40T
- Cassette
- Sunrace, 11-speed, alloy spider, 11-42t
WHEELS & TIRES
- Inner Tubes
- 700x28/38mm, 48mm Presta valve
- Front Wheel
- AXIS Elite Disc
- Rear Wheel
- AXIS Elite Disc
- Front Tire
- Specialized Pathfinder Sport, 700x38c
- Rear Tire
- Specialized Pathfinder Sport, 700x38c
WEIGHT
- Weight Size
- 56
- Weight
- 9.94kg (21 lb, 14.6 oz)
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | 64 | |
|---|---|---|---|---|---|---|---|
| Crank Length | 165 | 170 | 172.5 | 172.5 | 175 | 175 | 175 |
| Handlebar Width | 380 | 400 | 420 | 420 | 440 | 440 | 440 |
| Stem Length | 60 | 70 | 80 | 90 | 100 | 100 | 110 |
| Saddle Width | 155 | 155 | 143 | 143 | 143 | 143 | 143 |
| Seatpost Length | 350 | 350 | 400 | 400 | 400 | 400 | 400 |
| Stack | 571 | 577 | 592 | 610 | 634 | 659 | 684 |
| Bike Standover Height | 697 | 722 | 738 | 777 | 800 | 823 | 849 |
| Fork Length, Full | 390 | 390 | 390 | 390 | 390 | 390 | 390 |
| Wheelbase | 1026 | 1033 | 1039 | 1049 | 1066 | 1083 | 1095 |
| Top Tube Length, Horizontal | 529 | 542 | 558 | 573 | 589 | 605 | 628 |
| Chainstay Length | 432 | 432 | 432 | 432 | 432 | 432 | 432 |
| Reach | 401 | 365 | 374 | 383 | 392 | 410 | 419 |
| Head Tube Length | 99 | 104 | 116 | 133 | 159 | 185 | 209 |
| BB Height | 270 | 270 | 270 | 270 | 270 | 270 | 270 |
| Trail | 69 | 66 | 61 | 57 | 57 | 57 | 54 |
| Fork Rake/Offset | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
| Seat Tube Length | 470 | 500 | 530 | 560 | 590 | 390 | 430 |
| Head Tube Angle | 70 | 70.5 | 71.25 | 71.75 | 71.75 | 71.75 | 72.25 |
| BB Drop | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
| Front Center | 607 | 614 | 620 | 630 | 647 | 664 | 675 |
| Seat Tube Angle | 74 | 73.75 | 73.5 | 73.5 | 73.5 | 73.5 | 73 |
