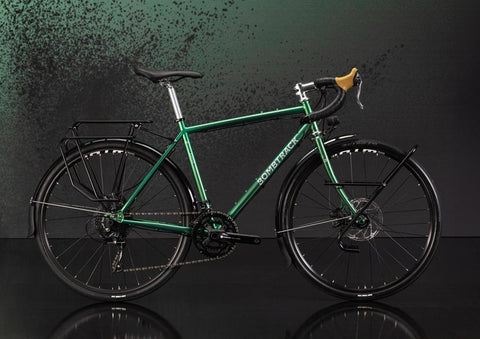

Arise Tour (Medium)
by Bombtrack"The distance-orientated Arise Tour's racks, mudguards, and dynamo lights help to escape far beyond the limits of the city. "
The Arise Tour is ready when the wanderlust hits you. Based on our incredibly adaptable, double-butted steel frameset, we have added Tubus touring racks, aluminum fenders, and a full lighting system from KT and Supernova. Transmission on a long-distance tour must be dependable, so Microshift’s ultra-reliable bar end shifters, 10 speed clutch mech, 11 – 42T wide ratio cassette running on a subcompact 46 / 30 chainset is the perfect setup. Braking is taken care of with TRP Spyre C mechanical calipers paired with a 180 mm rotor upfront to control your speed on those long descents. Great care has been taken to select all proven and reliable features, so you can focus on riding, not fixing your bike. With a bike as jam packed with features its hard to list them all! Like the fact it comes stock with a dynamo hub and lights, mounts for additional spokes on the seatstay, and so much more! This is truly the do it all bike with the components to take you further than ever before!
Bombtrack ARISE TOUR - Metallic Green Specs
- Frame: 4130 double butted crmo, heat treated front triangle, TA sliding dropouts, rack / fender mounts, 68 mm BSA BB shell
- Fork: 4130 crmo, TA, rack / fender mounts, internal hub dynamo cable routing
- Handlebar: Bombtrack CX-10 drop bar, 31.8 mm, 10° flare
- Grips: Bombtrack Escape bar tape
- Stem: Bombtrack Roam forged aluminium stem, -7°
- Headset: Neco H282 sealed external aheadset, 1.1/8''
- Levers: Tektro RL-340 brake levers
- Shifter: Microshift BS-M10 bar end shifter 2 x 10
- Brakes: TRP Spyre C post mount mechanic disc brakes
- Rotor: TRP 180 mm front and 160 mm rear rotor
- Crankset: Bombtrack Ames forged aluminium crank, 24 mm spindle
- BB: BSA sealed BB, external cups
- Pedals: -
- Chain: KMC X10 chain, 1/2'' x 11/128'', 116L
- Chainring: Steel, subcompact, 46 / 30 T
- Cassette: Microshift CS-H103 10-speed, 11 - 42 T
- Front derailleur: Microshift FD-R552-B
- Rear derailleur: Microshift RD-M62L, long cage
- Front hub: KT dynamo hub, 6-bolt disc
- Rear hub: Bombtrack Arc sealed hub, 11-speed, 6-bolt disc
- Through axle: 12 x 100 mm / 12 x 142 mm
- Front rim: WTB ST i19 double wall, TCS 2.0, 32h
- Rear rim: WTB ST i19 double wall, TCS 2.0, 32h
- Saddle: Bombtrack Fuzz saddle
- Seat post: Bombtrack Beech 27.2 mm x 300 mm
- Seat clamp: Bombtrack Origin 29.8 mm
- Front tire: XS - S Vee Tire Speedster 650B x 38C / M - XL Vee Tire Speedster 700C x 40C
- Rear tire: XS - S Vee Tire Speedster 650B x 38C / M - XL Vee Tire Speedster 700C x 40C
- Fender: Bombtrack Ward aluminium fenders, 50 mm
- Rack: Tubus Tara front, Logo Evo rear
- Kickstand: -
- Light: Supernova E3 Pure 3 front, E3 Tail Light 2 rear
- Weight: 14.7 kg (size M)
- Weight frameset: 2480 g frame (size M, incl. TA, hanger) / 1370 g fork (300 mm steerer, incl. TA)
- Maximum rider weight: 130 kg incl. luggage
- ASTM riding condition: 2
